Free During Development

Free Modbus TCP & RTU Client, Scanner & Logger

Download the fastest free Modbus TCP, RTU and ASCII Client and Scanner. The ultimate Modbus Client, Scanner, and Logger in one intuitive interface. Visualize data and debug problems instantly.

By Crabby - Made for Windows, macOS and Linux

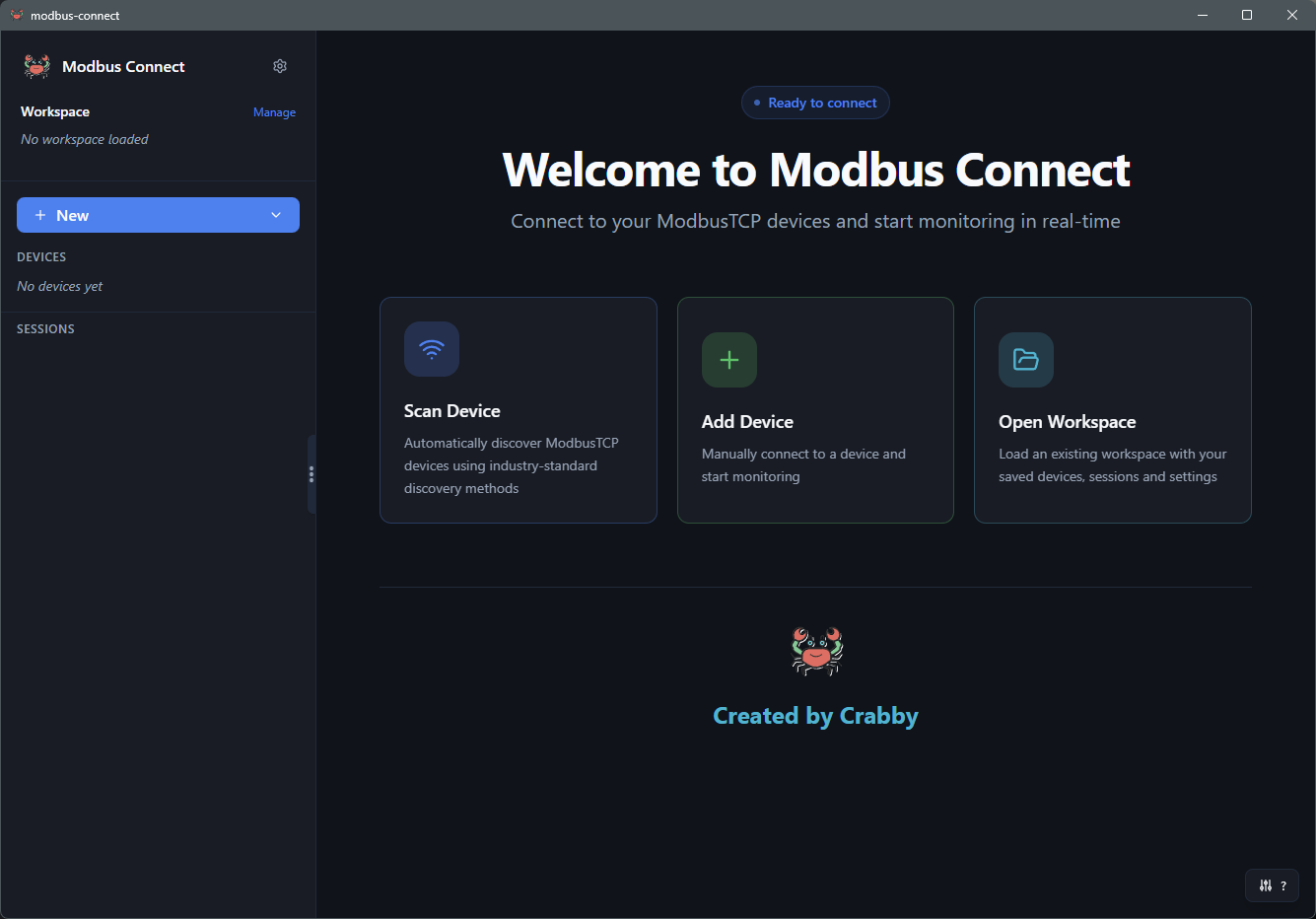

Modbus Connect Main Dashboard - Device list, monitoring sessions, and real-time data

Unlimited Devices

Lightning Speed

Modbus TCP & RTU Client & Scanner Features

A complete Modbus TCP, RTU and ASCII Client, Scanner, and Logger with powerful features for industrial automation professionals

Modbus TCP Scanner

Scan entire networks and individual devices to discover Modbus TCP endpoints automatically. Our scanner finds devices across IP ranges and identifies their unit IDs instantly.

  • Scan IP ranges & full networks
  • Scan device IDs 1-247
  • Extract vendor & product info

Modbus TCP & RTU Client

A full-featured Modbus client that monitors multiple devices simultaneously with configurable polling intervals - over Modbus TCP on the network, or Modbus RTU and Modbus ASCII on a serial port. Track changes in real-time with visual highlighting.

  • Multi-session monitoring
  • 100ms to 60s polling intervals
  • Pause/resume sessions
  • Unit-ID scan on a serial port

Modbus Logger

Powerful Modbus Logger that automatically records register data to files in multiple formats. Perfect for long-term data collection and compliance.

  • CSV, JSON, Tab-Delimited formats
  • Configurable log rotation policies
  • Multiple concurrent loggers

Per-Register Configuration

Advanced per-register settings with scaling, custom formulas, custom units, and multiple data formats for specialized measurements.

  • Linear scaling with offset
  • Custom formulas per register
  • Combine registers into derived values
  • 30+ unit presets + custom units
  • 8 data format types (Float32, Int32, etc.)

Protocol Logging

Inspect raw Modbus traffic with TX/RX logging. Perfect for debugging and analysis.

  • Raw byte inspection
  • Hex display with timestamps
  • Error tracking

High Performance

Built with Rust for blazing-fast performance and minimal resource usage.

  • Rust backend for speed
  • Low memory footprint
  • Responsive UI

How This Free Modbus Tool Works

Get started in minutes—scan, connect, and diagnose problems instantly

1

Discover Devices

Run the device scanner to automatically find all Modbus devices on your network. Add them to your device list with custom names.

2

Start Monitoring

Select a device, configure register type and address range, then start monitoring. Track multiple devices simultaneously.

3

Analyze & Save

View real-time data, create charts, and save your workspace. Export data for documentation and reporting.

Frequently asked questions

Devices, protocols, scanning, logging and installation, answered.

Is Modbus Connect free?

Yes. Modbus Connect is free during development, with a single license planned for the v1.0 release. Pricing for v1.0 has not been set yet.

What can Modbus Connect do?

Modbus Connect is a Modbus TCP, RTU and ASCII client, scanner, and logger in one application. It scans IP ranges to discover Modbus TCP devices and a range of unit IDs on a serial port, monitors multiple devices simultaneously with configurable polling intervals, logs register data to CSV, JSON, or tab-delimited files, and inspects raw Modbus TCP, RTU and ASCII traffic for debugging.

What platforms does Modbus Connect support?

Modbus Connect runs natively on Windows 7, 8, 10, and 11 (64-bit), as well as macOS (Intel and Apple Silicon) and Linux via RPM and DEB packages. On Windows, run the .exe installer, or the Windows Offline Installer on air-gapped machines; it bundles the WebView2 runtime. On macOS, open the .dmg and drag the app into Applications; the build is signed and notarized by Apple. On Linux, install the package with sudo dpkg -i or sudo rpm -i. Every installer is on the download page.

Which Modbus devices does Modbus Connect work with?

Any device that acts as a Modbus server: PLCs, energy meters, inverters, drives, controllers and I/O modules, from any manufacturer. Modbus Connect is the client, so it needs no vendor software or driver. For many devices you do not have to type the register map yourself: the device configuration library on modbusconnect.com has ready-made register maps with names, data types, scaling and units. A device page opens the app with its map loaded, or you can drop the device's JSON file on the app window. The registers arrive as offline draft sessions, ready to connect on site.

Does Modbus Connect support Modbus RTU?

Yes. Modbus Connect reads and writes Modbus RTU and Modbus ASCII over a local serial port - RS-485 or RS-232, usually through a USB-to-serial adapter - as well as Modbus TCP over the network. For a serial device you pick the port, set the line settings to match the device (baud rate 1200-115200, parity none/even/odd, 7 or 8 data bits, 1 or 2 stop bits, response timeout 100-10000 ms) and enter its unit ID; several unit IDs can share one port and take turns on the line. RTU frames carry a CRC-16 checksum and ASCII frames an LRC. Serial support is in the Windows, macOS and Linux builds alike, and the demo ports DEMO-RTU and DEMO-ASCII let you try both without hardware. On Linux, opening a real adapter requires your user account to be in the dialout group. A serial device behind a Modbus TCP gateway (an RS-485-to-Ethernet converter) is reached as Modbus TCP: enter the gateway's IP address and the serial device's unit ID.

How does the Modbus network scan work?

The Device Scanner takes one IP address or a range of up to 1024 addresses, the port (502 by default) and a range of unit IDs, and sends real Modbus requests to find devices that answer. Quiet mode, the default, probes one address at a time and looks like normal Modbus traffic. Fast mode first runs a concurrent TCP port scan and then queries only the addresses that responded, which is much quicker on a full subnet; long scans show an estimated duration before they start. On a serial port the scanner tries a range of unit IDs instead. Each device found can be named and added with one click. The network scanning guide walks through it step by step.

Which register types and data formats are supported?

All four Modbus data tables: coils, discrete inputs, input registers and holding registers. Values can be shown as Int16, UInt16, Int32, UInt32, Float32, Float64, hex, binary or ASCII, with selectable byte and word order for 32- and 64-bit values. Each register can have a label, a scale factor, an offset, a unit and a formula, show values as text (for example Running instead of 1), and give names to its 16 bits. Holding registers and coils can be written with FC05, FC06 and FC16, and every write asks for confirmation first.

What file formats can Modbus Connect log to?

The data logger writes register values to CSV, JSON or tab-delimited files. It logs the formatted value, such as a Float32 or a scaled reading, rather than raw 16-bit words, together with the register's label and, where a register shows values as text, that text as well. You choose the log folder, the delimiter and file rotation, and can set defaults for new loggers in Settings. Separately, the communication log shows every Modbus TCP, RTU and ASCII frame byte for byte and exports to CSV.

Does Modbus Connect need an internet connection or an account?

No. There is no account and no sign-in, and the app talks only to your Modbus devices, so it works on isolated plant networks. With Prepare Offline you can set up sessions, labels, formats, scaling and charts at your desk without any hardware, save the workspace, and connect on site with all of that intact. The only feature that goes online is opening a ready-made device configuration from modbusconnect.com.

Is there a device or session limit?

No. Modbus Connect supports unlimited devices and monitoring sessions on the free beta.

Free Modbus TCP & RTU Client Pricing

Download the free Modbus tool now. Full access during development with single license for production use.

Free During Development

Single License

$0now

Pricing TBD for v1.0 release

  • All current features included
  • Unlimited devices & sessions
  • Data logging, real-time charting and saved workspaces
  • Windows 7/8/10/11 (64-bit), macOS 10.15+ (Apple Silicon & Intel) and Linux support
Download Free Beta

Download the Free Modbus TCP & RTU Client Today

Join automation professionals using this free Modbus tool to scan, log, and diagnose problems instantly

Download Now
